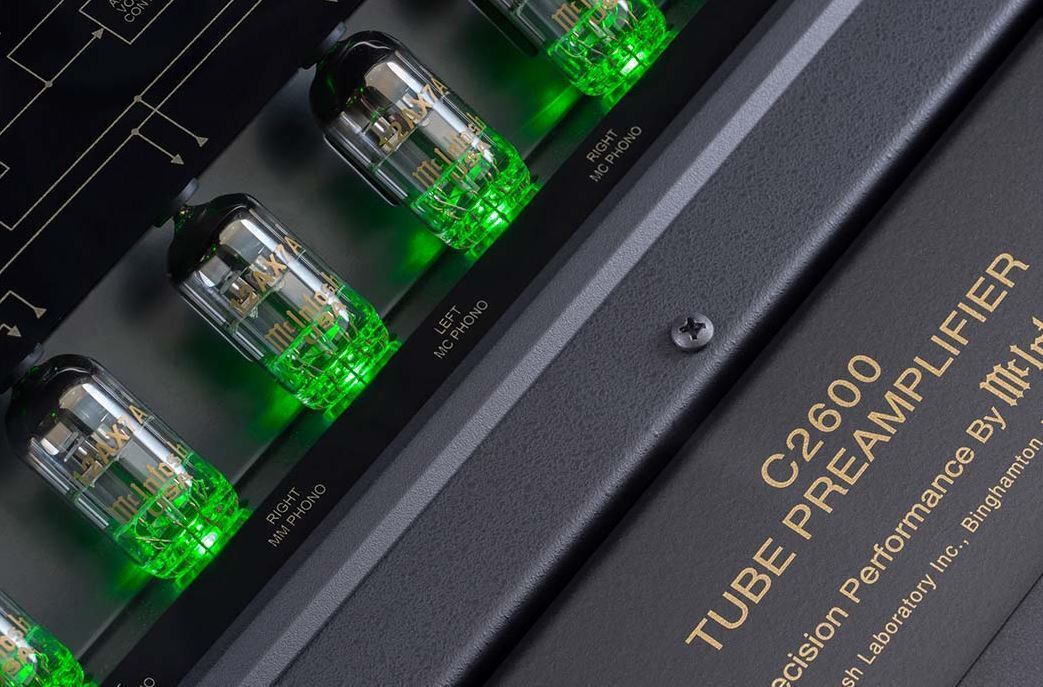

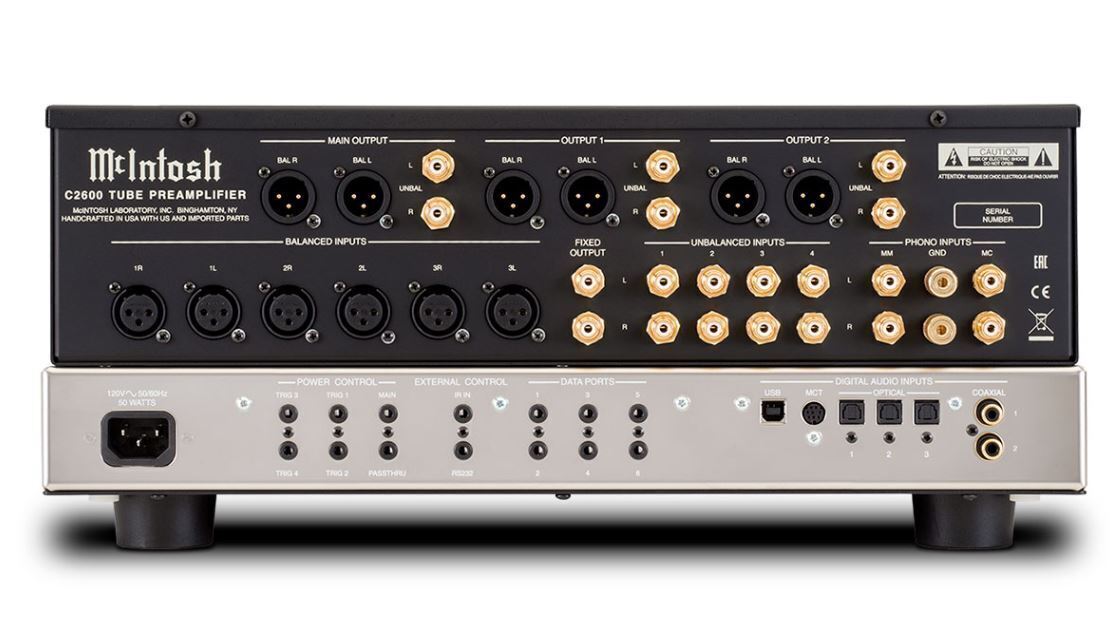

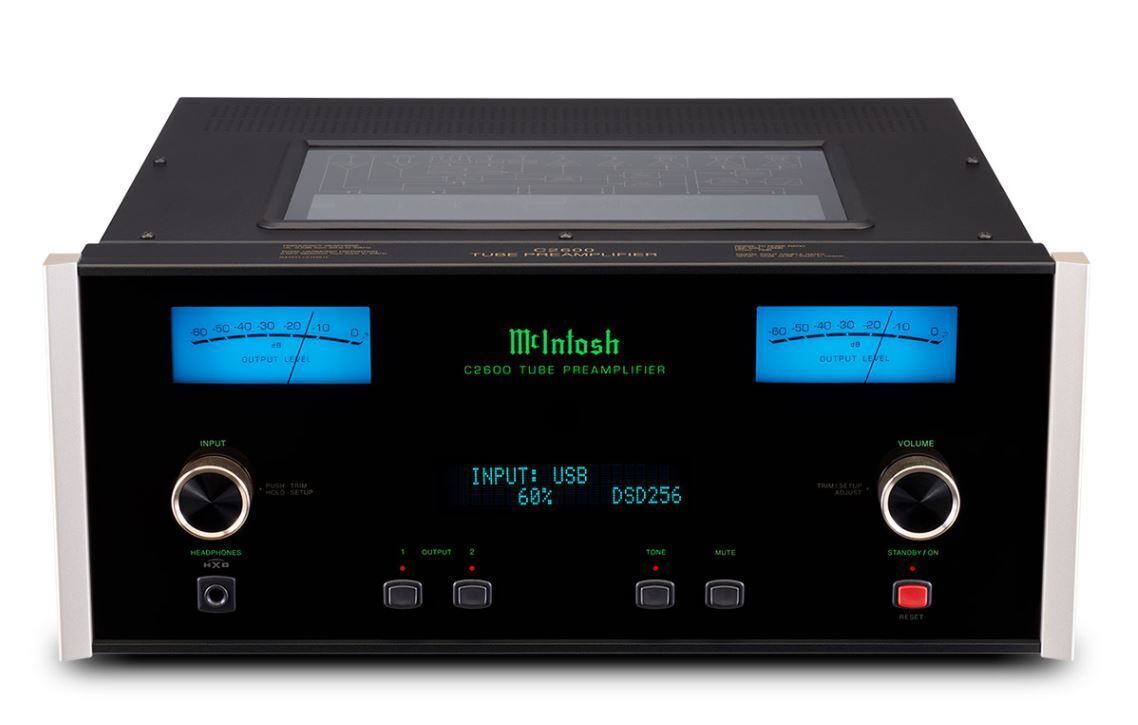

*매킨토시(McIntosh) C2600 진공관 프리 앰프*





















*Specifications*



Number of Channels
2



Total Harmonic Distortion
0.08%



Frequency Response
+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 15Hz to 100kHz



Maximum Volts Out (Balanced / Unbalanced)
16V RMS / 8V RMS



Sensitivity High Level (Balanced / Unbalanced)
900mV / 450mV



Sensitivity Phono (Moving Coil)
0.45mV



Sensitivity Phono (Moving Magnet)
4.5mV



Signal To Noise Ratio (High Level)
100dB



Signal To Noise Ratio (Moving Coil)
75dB



Signal To Noise Ratio (Moving Magnet)
75dB



Voltage Gain (High Level)
15dB



Voltage Gain (Moving Coil)
60dB



Voltage Gain (Moving Magnet)
40dB



Input Impedance (Balanced / Unbalanced)
44K ohm, 22K ohm



Balanced Input
3



Unbalanced Input
4



Phono Input Moving Coil
1 (adjustable)



Phono Input Moving Magnet
1 (adjustable)



Upgradeable Digital Audio Module
No



Digital Coaxial Input
2



Digital Optical Input
3



Digital MCT (DIN) Input
1



Digital USB Input
1



HDMI (ARC) Input
0



Digital AES/EBU Input
0



Balanced Fixed Output
0



Balanced Variable Output
3



Unbalanced Fixed Output
1



Unbalanced Variable Output
3



Headphone Output
1/4" High Drive with Headphone Crossfeed Director (HXD®)



Input Level Match
Yes, +/- 6dB



Home Theater PassThru
Yes



Unbalanced Analog Connector Type
Premium gold-plated solid brass



Service Port
0



Multi-Chassis or Single
Single, Two Layer



Output Meters
Yes



Vacuum Tube or Solid State
Vacuum Tube
(5) 12AX7a and (1) 12AT7



Power Consumption (On)
50 Watts



Dimensions
W:444.5 * H:193.7 * D:457.2mm



Weight
13.4kg

















*배송비 처리 기준*



서울,경기지역 단품은 직접 방문해주셔야 되며 셋트인 경우 서울 경기 지역은 직접 출장 매입 가능.

서울 경기 외 지역은 기본적으로 배송비는 5:5를 원칙으로 하고 있음.



자세한 문의는

010 - 2655 - 4343 직접 문의 또는 카카오톡 "리오사운드" 로 친구 추가 하셔서 문의 주시기 바랍니다.!
